Legacy Models

These Factor models are not currently in production.

Factor 4

Factor 4

Body Material: Eastern soft maple or alder
Finish: Gloss Polyurethane
Neck: Laminated hard rock maple; bolt on
Fingerboard: Ebony; 7-1/2 inch radius
Nut: Phenolic
Scale Length: 34 inches
Number of Frets: 24
Markers: Resin side dash™
Truss Rod: Single; adjustable at headstock
Neck Width: Nut 1-17/32 inches; 24th Fret 2-15/32 inches
Bridge: Kubicki with internal tuning machines; 0.750 inch spacing
Pickups: Two Kubicki humcancelling ™
Controls: Kubicki 18v Preamp
2 stacked pots (Vol/Pan and Treble/Bass boost) and 6 position rotary selector switch (three passive, two active and standby playing positions)
Overall Length: 44-1/2 inches
Body Length: 19-3/4 inches
Body Width: 13-1/2 inches
Body Depth: 1-9/16 inches
Weight: 8-1/2 lbs
Model Options: Fretless; Fretless with Black or White inlaid fret slots
Case: Deluxe hard shell included

Key Factor 4

Key Factor 4

Body Material: Eastern soft maple or alder
Finish: Gloss Polyurethane
Neck: Hard rock maple; bolt on
Fingerboard: East Indian rosewood; 7-1/2 inch radius
String Nut: Phenolic
Scale Length: 34 inches
Number of Frets: 24
Markers: Resin side dash™
Truss Rod: Single; adjustable at headstock
Tuners: Schaller custom design
Neck Width at Nut: 1-17/32 inches
Neck Width at 24th: 2-15/32 inches
Bridge: Hard-coat black anodized aluminium with individually adjustable saddle barrels
Bridge Spacing: 0.750 inch
Pickups: Two Kubicki humcancelling ™
Controls: Kubicki 9v Preamp
2 stacked pots (Vol./Pan, Treble/Bass boost)
4 position rotary selector switch (1 passive, 2 active and standby playing positions)
Overall Length: 43-1/2 inches
Body Length: 18-3/4 inches
Body Width: 12-3/4 inches
Body Depth: 1-5/8 inches
Weight: 7 lbs
Model Options: Fretless; Fretless with inlaid black or white lines, Maple or Ebony Fingerboard, 18v Preamp.
Case: Gig Bag included

CUSTOMIZED KEYS: Please take notice of how the strings are wrapped around the key post. Some are on clockwise and others counter clockwise. The tuning knobs always tune up counter clockwise–the standard way.

Key Factor 5

Key Factor 5

Body Material: Eastern soft maple or alder
Finish: Gloss Polyurethane
Neck: Hard rock maple; bolt on
Fingerboard: East Indian rosewood; 7-1/2 inch radius
String Nut: Phenolic
Scale Length: 34 inches
Number of Frets: 24
Markers: Resin side dash™
Truss Rod: Single; adjustable at headstock
Tuners: Schaller custom design
Neck Width at Nut: 1-3/4 inches
Neck Width at 24th: 2-7/8 inches
Bridge: Hard-coat black anodized aluminium with individually adjustable saddle barrels
Bridge Spacing: 0.700 inch
Pickups: Two Kubicki humcancelling ™
Controls: Kubicki 9v Preamp
2 stacked pots (Vol./Pan, Treble/Bass boost)
4 position rotary selector switch (1 passive, 2 active and standby playing positions)
Overall Length: 46-3/4 inches
Body Length: 19-1/2 inches
Body Width: 13-1/2 inches
Body Depth: 1-5/8 inches
Weight: 8 lbs
Model Options: Fretless; Fretless with inlaid black or white lines, Maple or Ebony Fingerboard, 18v Preamp.
Case: Gig Bag included

CUSTOMIZED KEYS: Please take notice of how the strings are wrapped around the key post. Some are on clockwise and others counter clockwise. The tuning knobs always tune up counter clockwise–the standard way.

Factor 5 Prototype

The five-string Factor that Phil delivered to Fender during the licensing years, 1988 to 1991. It was never put into production.

Phil holding the Factor 5 Red Burst
Phil holding the Red Burst

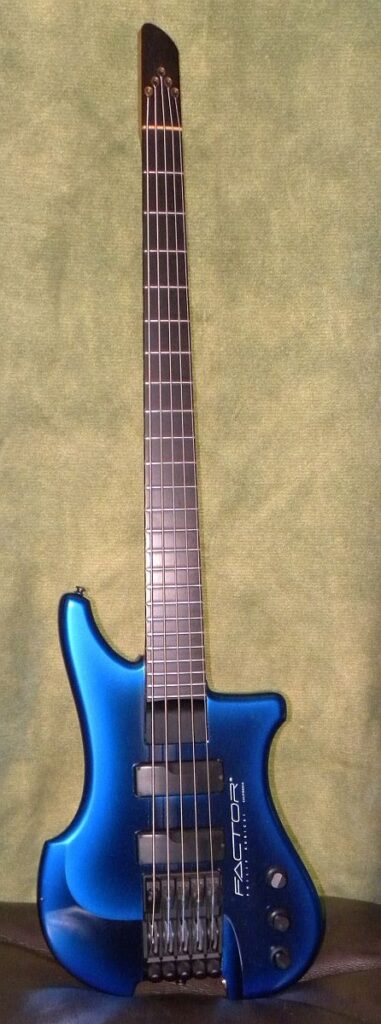

Factor 5 Blue Burst
Factor 5 Blue Burst

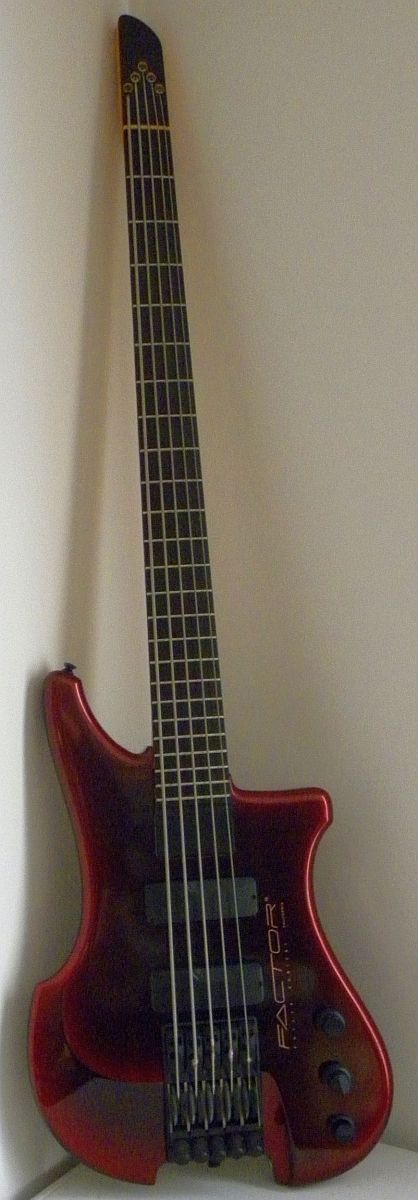

Factor 5 Red Burst
Factor 5 Red Burst
Factor 5 Red Burst body
Red Burst Body
Factor 5 Blue Burst body
Blue Burst Body
